When you walk away from your pipelines, you count on your pipe supports to provide them with the help they need to endure stress and shock. Failure can lead to significant safety hazards, costly repairs, and operational downtime. Fortunately, you can avoid such issues by understanding the most frequent causes of support failure.

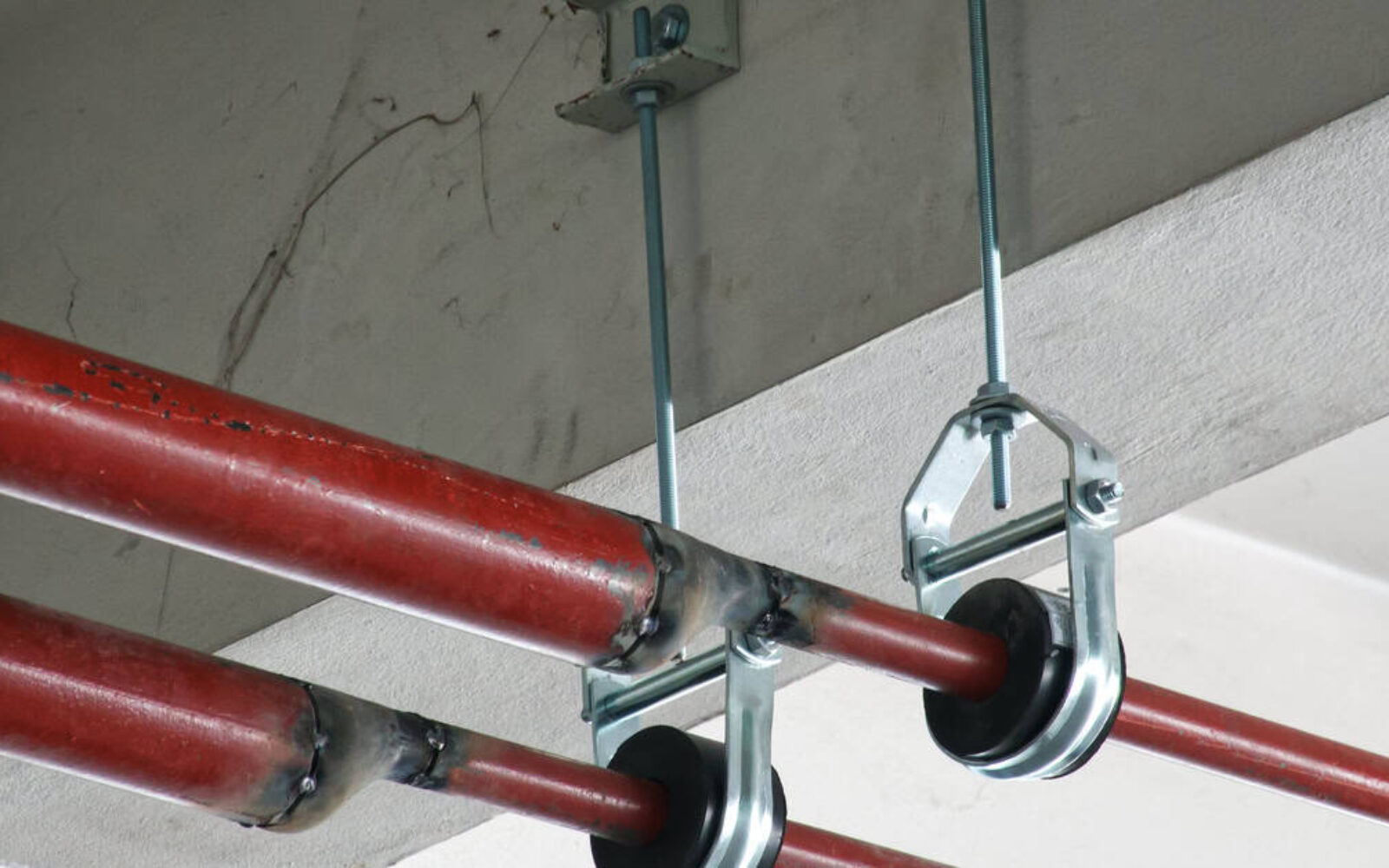

1. Rust Accumulation
One of the leading causes of pipe support failures is rust, which develops when metal supports experience exposure to moisture over time. Rust weakens structural integrity, reducing load‑bearing capacity. Regular inspections and maintenance, including applying anti‑corrosion coatings or using rust‑resistant materials, are critical.
2. Poor Spacing
If supports are installed too far apart, pipes can bow or deflect between supports. This leads to undue stress, fatigue, and potential fractures. Ensuring that support spacing adheres to engineering standards based on pipe size, material, load, and the contents is essential to avoid failures.
3. Support Components or Installation That Damage the Pipe
Supports themselves can introduce problems: improper alignment, sharp edges, or abrasive contact points can lead to damage. Over time this damage becomes a weak point under pressure or vibration. Proper support selection, alignment, buffering, and installation are vital.
4. Overloading of Supports
Each support has a maximum load rating. Exceeding this rating—because of added weight over time (e.g. piping, insulation, fluid, possible buildup of debris)—can cause support failure, sagging, or collapse. Engineers must account for all anticipated loads, including dynamic loads like fluid surge or thermal expansion.
5. Moisture‑Collecting Buffers
Buffers or pads are often used to cushion pipes and prevent direct contact with supports. However, if these buffers are made from moisture‑absorbing materials (like certain rubbers or untreated materials), they can trap water and accelerate rust on both the support and the pipe. Regular inspection and use of moisture‑resistant buffer materials are necessary.
Triad Bellows’ Added Value
In addressing pipe support failures, Triad Bellows offers more than off‑the‑shelf guidance. Our value comes from technical expertise, customization, and a commitment to reliability that reduces your long‑term risk and cost.
-
Custom Pipe Guides & Support Solutions: We manufacture custom pipe guides designed to manage movement and minimize stress, while fitting your specific piping configuration. Our guidance ensures movement is controlled so supports do not fail from misalignment or overloading.
-
Material & Corrosion Resistance: We use rust‑resistant materials and coatings for supports and guides, and advise on buffer materials that resist moisture absorption. This helps prevent rust accumulation and buffer‑induced moisture damage.
-
Engineering Best Practices Support: Our engineering team assists in support spacing, load calculations, and alignment practices—so supports are installed correctly, damage points are minimized, and overload risks are accounted for.
-
Inspection & Maintenance Guidance: We help you set up regular inspection schedules, recommend buffer materials, and provide documentation for preventive maintenance—catching issues early before failures occur.
-
Durability & Total Cost of Ownership: With proper design, materials, and installation, our solutions help reduce downtime, repair costs, and safety risks, delivering lower cost of ownership across the life of your piping system.
Frequently Asked Questions (FAQs)
Q1: How often should pipe supports be inspected to prevent failure?
A: It depends on the service conditions. For corrosive or wet environments, inspections should be frequent (e.g. semi‑annual or quarterly). In less harsh conditions, annual inspection may suffice. Inspections should focus on rust, alignment, buffer condition, load shifts, and any visible deformation.
Q2: What buffer materials are recommended to avoid moisture‑related failure?
A: Use moisture‑resistant, non‑absorbing materials such as treated polymers, stainless steel contact components, or specially coated metals. Avoid untreated rubbers or pads that retain water. Where exposure is high, use drainable or breathable buffer designs so moisture does not accumulate.
Q3: How do you determine proper spacing for pipe supports?
A: Proper spacing is based on pipe diameter, wall thickness, material, pipe content (fluid or gas), temperature, insulation, and expected loads. Engineering standards (codes and best practice guides) give guidelines; calculations for deflection and load help set exact spacing.
Q4: What are typical warning signs of an overloaded support?
A: Signs include sagging piping, elongated or bent support members, misalignment at flanges, protruding bolt stress, visual deformation on supports, and audible creaks or loose joints. Also, uneven surface wear on pipes where they contact supports may indicate overload or misalignment.
Q5: Can upgrading supports retrofit older piping systems to avoid future failures?
A: Yes. In many cases, retrofitting with better supports, improved guides, and moisture‑resistant buffers can significantly improve performance. However, retrofits must be carefully engineered to account for existing loading, movement, anchoring, and alignment to avoid introducing new issues.
Contact Triad Bellows
Pipe support failures are often preventable through good material choices, proper spacing, correct buffer selection, and proactive inspection. Triad Bellows’ engineering, custom guides, material expertise, and support services help you avoid costly support failures and keep piping systems reliable and safe.
If you’re concerned about current or future pipe support failures, reach out to Triad Bellows. Let our engineering team assess your system, recommend optimized supports and guides, and help you implement strategies that lower risk and maintenance costs.
