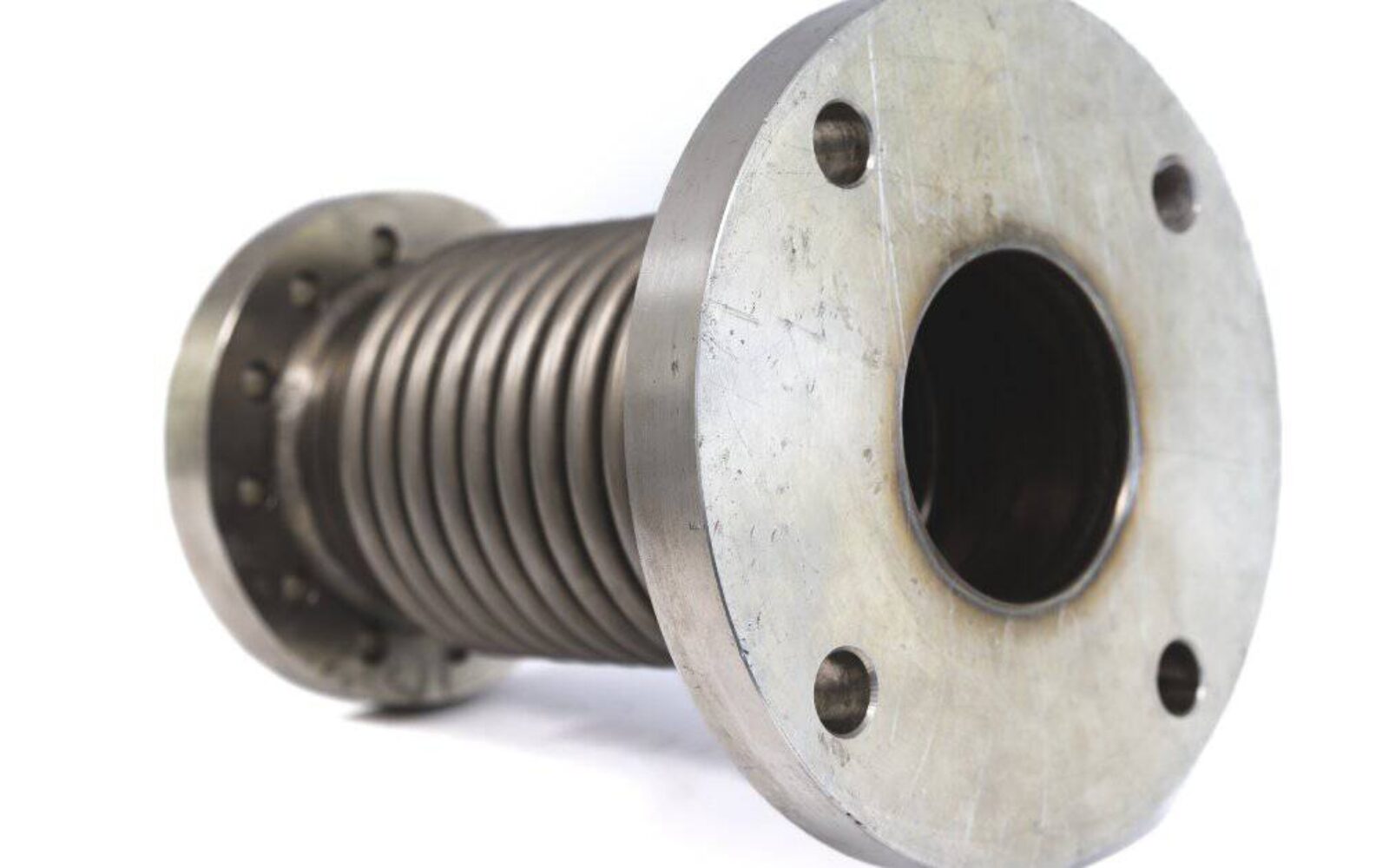

When engineers install an expansion joint on a piping system, one of the most common items they use to connect this component is a flange end fitting. There are good reasons for that, as they deliver several advantages. Here’s a look at why flange end fittings are a smart choice.
Key Advantages of Flange End Fittings
1. Simplified Installation
Flange end fittings streamline installation in complex piping systems. Their standardized surfaces and bolt patterns make alignment and connection of pipes more straightforward, reducing installation time and minimizing the risk of error.
2. Strong Structural Integrity
These fittings provide robust joints that can withstand pressure, stress, thermal cycling, and vibration. By keeping components properly aligned and securely bolted, they help prevent misalignment and leakage under demanding operating conditions.
3. Easier Maintenance and Serviceability
When routine inspections, repairs, or replacements are needed, flange end fittings allow for easier disassembly and reassembly. This can significantly reduce labor costs and downtime. Components can be taken off without needing to cut or otherwise damage pipe or system.
4. Enhanced Safety
A properly installed flange end fitting reduces the risk of leaks or sudden failures. This protects not only the system integrity but also worker safety, especially in systems carrying hazardous fluids or operating at high pressure/temperature.
5. Cost Effectiveness Over Life Cycle
While flange end fittings may have higher upfront cost compared to some simpler connection types, the savings accrue over time: reduced maintenance, fewer leaks or failures, less downtime, and longer service life. These all contribute to better return on investment.
Triad Bellows’ Value Proposition
At Triad Bellows, we’re committed to offering flange end fittings and expansion joints that don’t just function — they perform reliably under your toughest conditions. Here’s what makes us a preferred partner:
-
Custom Engineering Capability — We tailor flange end fittings (size, material, pressure rating) to your exact specifications, ensuring fit and performance in specialized systems.
-
Premium Materials & Manufacturing Quality — Our components are made from high‑grade metals and undergo rigorous testing (material traceability, pressure/temperature cycling, weld quality) so you get long-term durability.
-
Full Technical Support — From selection through installation, we support your team with engineering guidance. We help you choose the correct flange standard, rating, proper installation practices, and maintenance tips to extend service life.
-
On‑Time, Reliable Delivery — Minimizing downtime is critical. We prioritize schedules, manage inventory, and ensure that components reach you when promised.
-
Warranty & After‑Sale Service — We back our products with solid warranty protection and responsive customer service should issues arise.
FAQs
Q1: What flange standards are commonly used for flange end fittings?
A: Common flange standards include ANSI/ASME B16.5, B16.47, MSS SP‑44, DIN, EN, JIS, among others. The correct standard depends on the material, pressure class, size, and service conditions (temperature, corrosion, etc.).
Q2: How do I know when to choose a flange end fitting vs a weld end or threaded end?
A: Flange end fittings are preferred when you need frequent access (maintenance, inspections), when alignment/fitment flexibility is required, or when handling high pressure/temperature/vibration. Weld ends might be chosen for permanent or space‑constrained installations; threaded ends for smaller sizes or lower pressure, non‑critical services.
Q3: What maintenance practices help maximize the life of flange end fittings?
A: Regular inspection of gasket condition, bolt torque checks (especially after thermal cycling), maintaining proper alignment of mating flanges, ensuring sealing surfaces are clean, and using corrosion resistant materials or coatings in harsh environments all help extend service life.
Q4: Can flange end fittings handle thermal expansion and vibration in piping systems?
A: Yes. Flange end fittings are compatible with expansion joints and other flexible connectors that absorb vibration or allow thermal movement. The flange provides a robust mechanical connection while the expansion joint handles movement.
Why These Benefits Matter
-
Reduced downtime when systems are easier to access and repair
-
Lower lifetime cost by avoiding leaks, failures, and re‑fabrication
-
Improved safety through secure, well‑sealed connections
-
Better system performance through reliable alignment and seal integrity
Flange end fittings are more than just connectors — they’re critical components that contribute to the reliability, safety, and cost‑effectiveness of any piping system. When you pair those fittings with high‑quality engineering, materials, and service — as you get from Triad Bellows — you invest in long‑term performance and peace of mind.
Want to learn whether flange end fittings are the best choice for your application? Contact Triad Bellows today for a free consultation. Our experts can help specify the right fitting standard, material, and design tailored to your system’s needs.
