In the Chemical Process Industry (CPI), expansion joints play a vital role in protecting piping systems, equipment, and personnel. When selected and maintained correctly, they ensure system reliability, reduce downtime, and enhance safety. Below are some updated considerations and features to include.

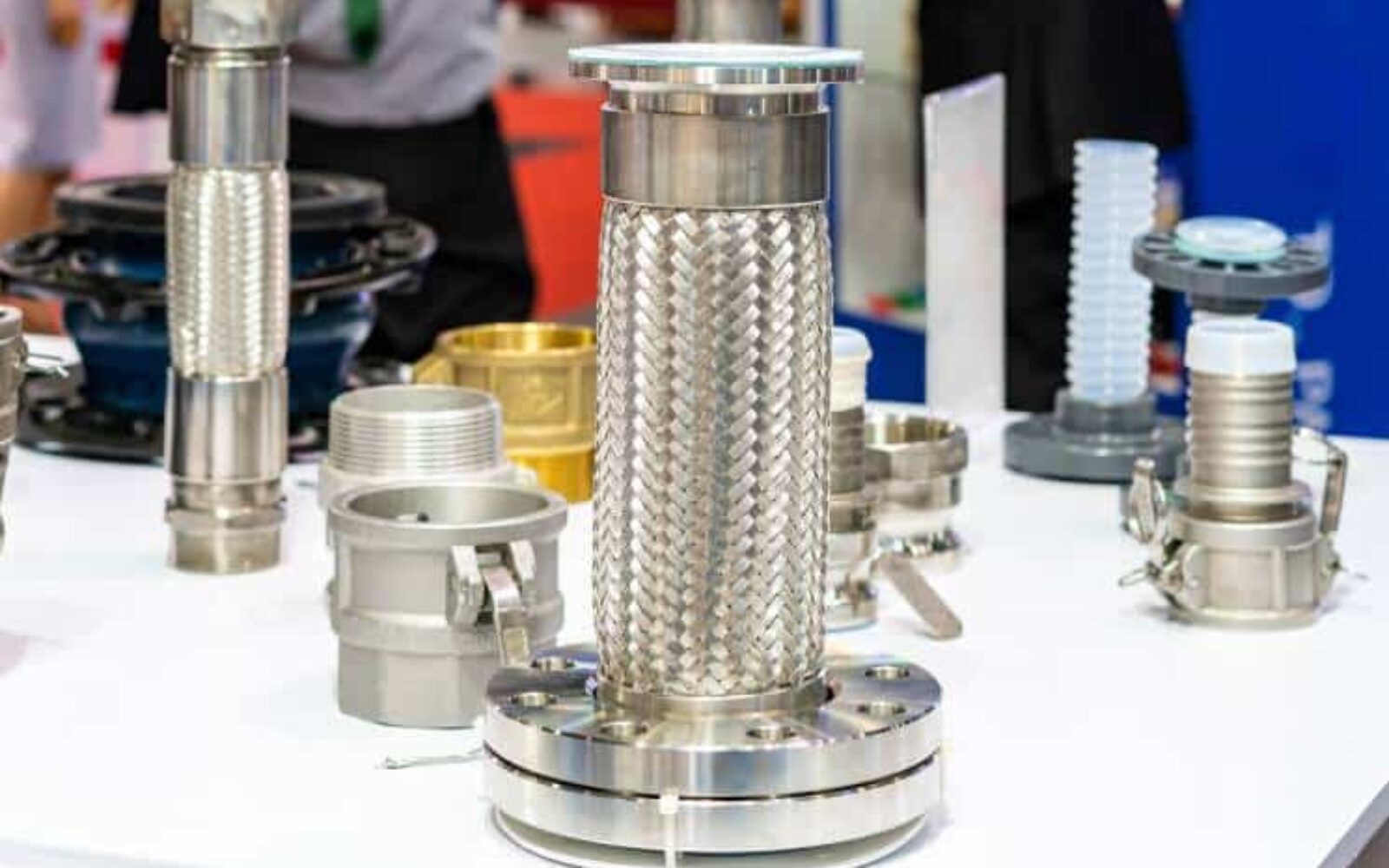

How Chemical Plants Can Benefit From Expansion Joints
-
Accommodate thermal expansion / contraction in pipes due to temperature fluctuations, reducing stress on piping and connected vessels/equipment.
-
Reduce risk of mechanical failures, leaks, and ruptures by allowing movement and reducing rigid stresses.
-
Absorb vibration and sound, which helps extend life of piping, supports, and connected equipment.
-
Compensate for misalignment, settling or movement of foundations / supports, helping maintain integrity in changing operating conditions.
What to Look for in Expansion Joints for CPI Applications
When choosing expansion joints for chemical process environments, keep in mind:
-
Chemical Compatibility
The process media (liquids, gases, corrosive chemicals) must match the expansion joint materials. Using incompatible materials causes corrosion, embrittlement, or chemical attack, leading to premature failure.
-
Temperature & Pressure Ratings
The joint must be rated (or, better yet, over‑rated) for the maximum and minimum operating temperature and pressure, including upsets and transient spikes.
-
Flexibility and Movement Capacity
Assess all types of movement required: axial, lateral, angular, vibration, misalignment. A joint that can’t accommodate required movements may impose unintended forces. -
Ease of Installation and Manufacturer Support
Good manufacturer support: clear specs, compatible end fittings/flanges, guidance for installation. Ease of replacing parts, maintaining seals, and tightening bolts helps long‑term reliability.
-
Standards & Certifications
Compliance with industry standards (e.g. EJMA or others applicable) provides assurance of quality, performance, and safety. Manufacturers who adhere to such standards tend to have more reliable products.
How Chemical Plants Should Maintain Their Expansion Joints
-
Regular inspection: look for signs of damage (cracks, deformation), leakage around flanges, loose or corroded bolts.
-
Cleaning: remove any buildup of residue or deposits that could interfere with movement or cause corrosion. Tightening and checking fasteners & connections: ensure flanges are properly bolted, no misalignment is developing.
-
Monitoring operating conditions: temperature, pressure, chemical composition, vibration. Track changes over time to detect potential issues early.
Triad Bellows’ Value‑Added Proposition in CPI Applications
Here’s what Triad Bellows brings beyond basic expansion joints, specifically tailored for CPI environments:
-
Material Engineering & Chemical Resistance
We offer a wide range of material options (stainless steels, exotic alloys, etc.) selected for resistance to corrosion, chemical attack, and harsh process media. Our materials are chosen to maximize lifespan in challenging CPI conditions. -
Custom Design & Specification
We design joints to match your precise requirements: expected thermal cycles, pressure/temperature extremes, chemical exposure, required movement (axial, lateral, angular, misalignment), and mount constraints. We do not use generic designs when custom specifications will yield safer, more durable results. -
Standards Compliance & Quality Assurance
Our products follow expansion joint industry standards (e.g. EJMA or equivalent). We perform rigorous testing of joints for temperature, pressure, cyclic fatigue, and seal integrity to help ensure you don’t suffer unplanned failures. -
Installation & Maintenance Support
We provide guidance on proper installation, correct flange fittings, alignment, fastener torqueing, and regular maintenance practices so you get full performance over the life of the joint—not just when it’s new. -
Reliability & Lifecycle Cost Focus
Our goal is to minimize total cost of ownership: fewer replacements, lower risk of leaks or system shut‑downs, reduced maintenance, and longer intervals between interventions. That’s what “industrial strength” means in real chemical plant operations. -
Responsive Engineering & Technical Support
We back up our products with expert engineering consultation. If your process changes, or if site conditions vary from design assumptions, we can revisit material choices, movement allowances, or support setups to adapt.
FAQs (Frequently Asked Questions)
Q1: How do I choose the right material for an expansion joint when the process media is highly corrosive?
A: Start by identifying the chemical composition, temperature, pressure, and presence of any contaminants. Then consult material compatibility charts. Stainless steel grades (e.g. 304, 316) might work in milder corrosive environments; exotic alloys (such as Inconel, Hastelloy, or others) may be required for more aggressive media. Also consider coatings or liners if full alloy materials are cost‑prohibitive.
Q2: What standards should I verify when selecting expansion joints for CPI use?
A: Look for compliance with EJMA (Expansion Joint Manufacturers Association), or other recognized standards in your jurisdiction or industry. Also check for manufacturer certifications (e.g., ISO, API, or local equivalents), pressure/temperature ratings, cycle fatigue data, and documentation of testing.
Q3: How do you inspect an expansion joint in a chemical plant to ensure it’s still performing adequately?
A: Inspection should include visual checks for corrosion, deformation or cracks in the bellows; inspecting flange bolts for tightness and corrosion; checking for leakage or signs of seepage; verifying that no deposits or buildup are obstructing movement; and monitoring changes in operating variables (temperature, pressure, vibration). If possible, track operating history to identify trends.
Q4: How often should expansion joints be replaced or retired in CPI environments?
A: Replacement depends on severity of conditions: temperature, chemical aggressiveness, amount of movement/vibration, and mechanical load. Rather than a fixed time, it should be based on inspection findings. That said, many joints in CPI that are well‑specified and well‑maintained may last many years (often over a decade), but others under severe conditions may require replacement sooner. Planning for periodic review is best.
Q5: Can misalignment or foundation settling significantly impact expansion joint lifespan in CPI plants?
A: Yes, misalignment or settling can impose unintended lateral or angular loads on the bellows beyond its design, rapidly increasing fatigue and leading to premature failure. Proper support, alignment design, and provision for misalignment where needed are important.
Contact Triad Bellows
Expansion joints are more than just flexible connectors—they are critical safety and reliability components in CPI operations. By choosing the right material, ensuring proper specification, inspecting regularly, and working with a manufacturer who supports you end‑to‑end, chemical plants can avoid failures, reduce downtime, and improve overall safety.
If you’re planning or reviewing expansion joint usage in your plant, reach out to Triad Bellows. We’d be glad to evaluate your application, help you specify the right joints, and support maintenance practices that keep your systems running safely and efficiently.
