Expansion joints play crucial roles in numerous industries dealing with high‑temperature processes. Heat regulation is essential for maintaining operational efficiency and safety. Neglecting thermal management can lead to joint failure, costly downtime, and potentially hazardous situations. Read on to learn several important tips for regulating heat in expansion joints.
Key Tips for Heat Regulation in Expansion Joints
1. Learn the Temperatures the Joint Must Withstand
Before designing or installing an expansion joint, determine what temperatures it must endure in your piping system. Each material has a temperature threshold, and exceeding it can lead to joint deformation or failure. Knowing the extremes the joint must withstand will help you decide what your joint needs for its intended application.
2. Pick the Best Material for the Joint

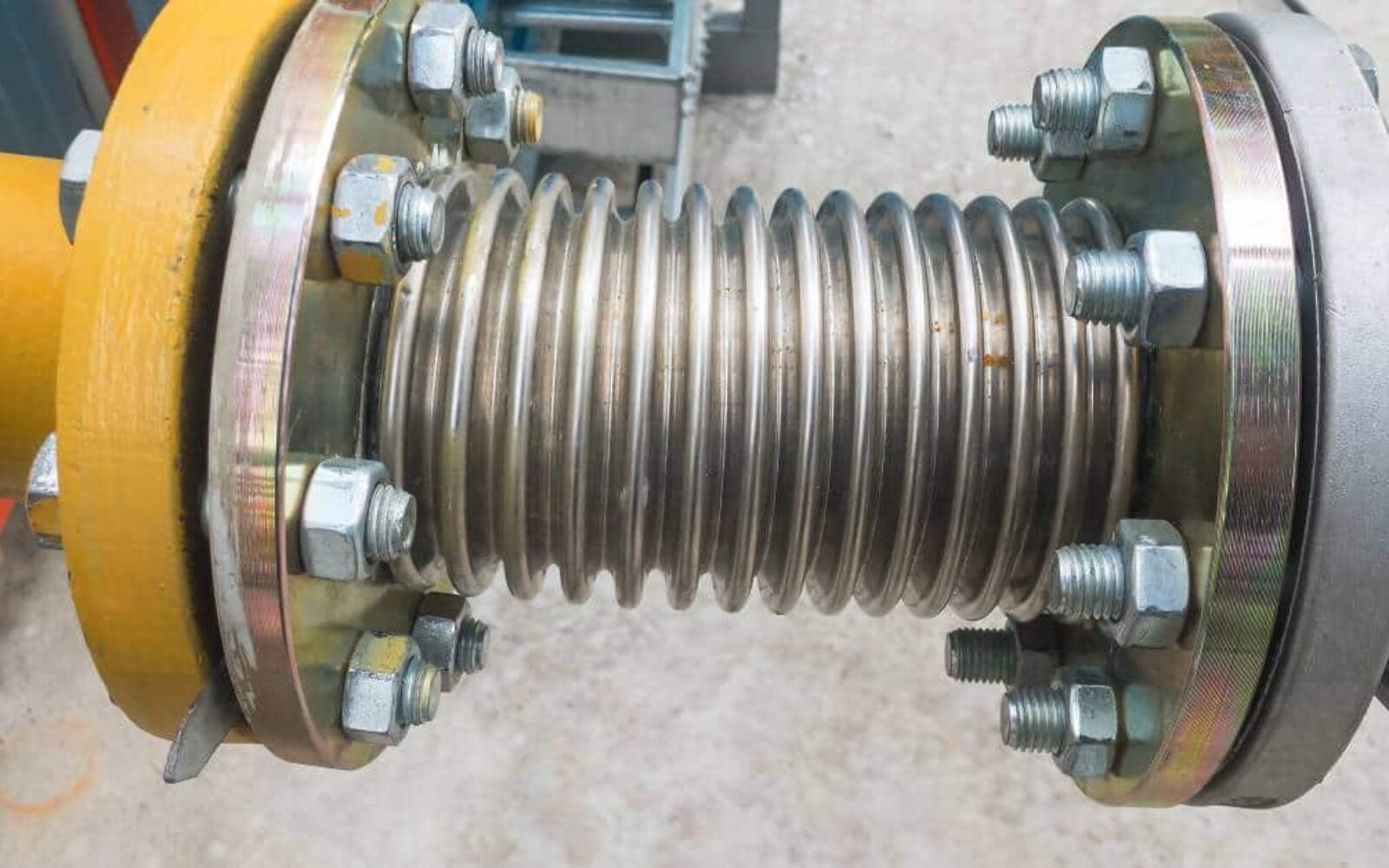

As you enter the design stage of your expansion joint, pick a material that can handle the heat. Stainless steel bellows are great at enduring high temperatures. However, don’t let this be the only factor you consider when choosing the material! Also consider what type of fluid flows through the joint, the system pressure, and the environmental conditions. This helps ensure the joint meets all of your system’s needs.
3. Insulate the Joint
Reducing thermal stress by insulating the joint helps protect it and also enhances system efficiency by maintaining stable temperatures. Insulation helps buffer rapid temperature changes and reduces external heating or cooling effects.
4. Monitor the Temperatures
Add sensors or monitoring systems to regularly track the temperatures of your expansion joints. Unexpected fluctuations (temperature spikes or dips) can lead to expansion or contraction beyond what the joint was designed for. Monitoring enables early detection, corrective action, and helps maximize the lifespan and reliability of the joint.
Triad Bellows’ Added Value
At Triad Bellows, reliability, custom design, and long‑term performance are foundational in everything we do. Here’s what sets us apart when it comes to expansion joints and heat regulation.
-
Material Expertise and Selection: We offer stainless steel and other heat‑resistant alloys that are rigorously tested to perform under high temperatures, high pressure, and corrosive media.
-
Custom Engineering: Every expansion joint is designed to match the specific thermal, mechanical, and environmental demands of your system—including temperature extremes, fluid type, cycle frequency, and insulation requirements.
-
Quality Assurance & Testing: We conduct controlled tests for thermal cycling, pressure, fatigue, and durability to ensure that joints will handle real‑world conditions without premature failure.
-
Thermal Management Solutions: Beyond just the bellows, we provide guidance on insulation, sensors, protective covers, and system integration to optimize thermal regulation.
-
Service & Support: From selection and specification through installation and maintenance, we support clients with engineering consultation, documentation, and responsive service to minimize downtime and total cost of ownership.
FAQ (Frequently Asked Questions)
Q1: What temperature range can expansion joints from Triad Bellows handle?
A: It depends on material choice. Standard stainless steel bellows from Triad Bellows can handle temperatures up to several hundred degrees F (or higher in certain alloys). For higher‑temperature or aggressive environments, we recommend high‑nickel or exotic alloy bellows. The specific temperature rating is based on your application’s parameters.
Q2: How does insulation affect the performance of expansion joints?
A: Proper insulation reduces external heat exposure, stabilizes joint temperature, and mitigates thermal gradient stresses. It can extend the life of the joint and reduce maintenance requirements. However, insulation must be compatible with the joint’s geometry and end fitting configurations, and allow for necessary expansion movement.
Q3: What type of sensors or monitoring should be used to track expansion joint temperature?
A: Typically, temperature sensors such as thermocouples or RTDs (resistance temperature detectors) are used. They can be installed on or near the bellows. In more advanced systems, continuous monitoring or alarm thresholds can help alert operators when temperature deviates from safe operational limits.
Q4: How often should expansion joints be inspected in high‑temperature systems?
A: Inspection frequency depends on the severity of thermal cycling, temperature magnitude, environmental factors (corrosive atmosphere, outdoor exposure, etc.), and criticality of the system. As a general guideline, at least once per year; more frequent inspections (semi‑annual or quarterly) are advisable for highly demanding applications.
Q5: Can a poorly regulated temperature lead to catastrophic failure?
A: Yes. If the materials are pushed beyond their thermal limits (due to excessive heat, lack of insulation, or unmonitored conditions), bellows can deform, crack, leak, or lose elasticity. This can result in leaks, misalignments, or even dangerous failures depending on the fluid or environment involved.
Contact Triad Bellows
Effectively regulating heat in expansion joints isn’t optional—it’s essential for safety, reliability, and reducing long‑term cost of ownership. With the right material, insulation, monitoring, and design in place (plus the expertise of a trusted manufacturer), expansion joints can perform reliably even under high thermal stress.
If you’re specifying expansion joints for high‑temperature systems, Triad Bellows is ready to help. Contact our engineering team to review your system’s requirements, select optimized materials, and design joints that will last—saving you maintenance, downtime, and risk.
