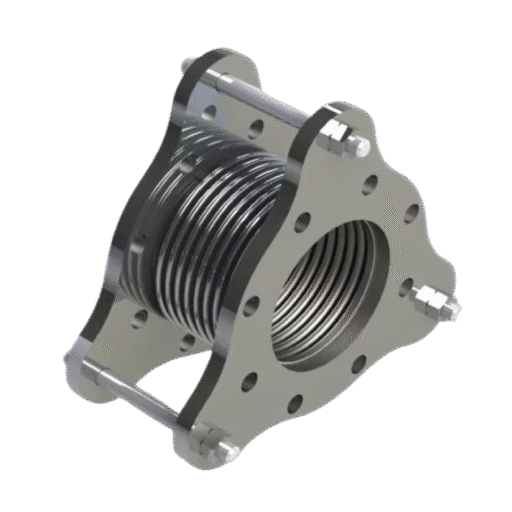

Pump Connectors with Tie Rods
Pump Connectors with Tie Rods are designed to absorb thermal expansion, vibration, and other movements in pump systems. The inclusion of tie rods helps contain pressure thrust, reducing stress on connected equipment. These connectors enhance the longevity and reliability of pump systems.
Categories
Pump Connectors with Tie Rods are designed to absorb thermal expansion, vibration, and other movements in pump systems. The inclusion of tie rods helps contain pressure thrust, reducing stress on connected equipment. These connectors enhance the longevity and reliability of pump systems.
| MOTION CAPABILITY | SPRING FORCES | |
| LOW |  Axial |
MEDIUM |
| LOW |  Lateral |
HIGH |
| LOW |  Angular |
LOW |
 |
Diameter Range: 2″ – 24″ |
 |
Temperature Range: -400º F up to 700ºF |
 |
Pressure Range: Full Vacuum to 300 PSIG |
| AVAILABLE ACCESSORIES | ||
 |
TIE RODS / LIMIT RODS | INCLUDED |
 |
FLOW LINERS | YES |
 |
SHROUDS / COVERS | YES |
Tie Rod Bellows Pump Connectors are almost always constructed with multi-ply bellows that will stand up to the pump vibration. This style of metal expansion joint is usually very short and has limited movement capability. Triad Bellows manufactures metal bellows pump connectors that are made with domestic materials that meet AIS, Buy America and Buy American requirements.
