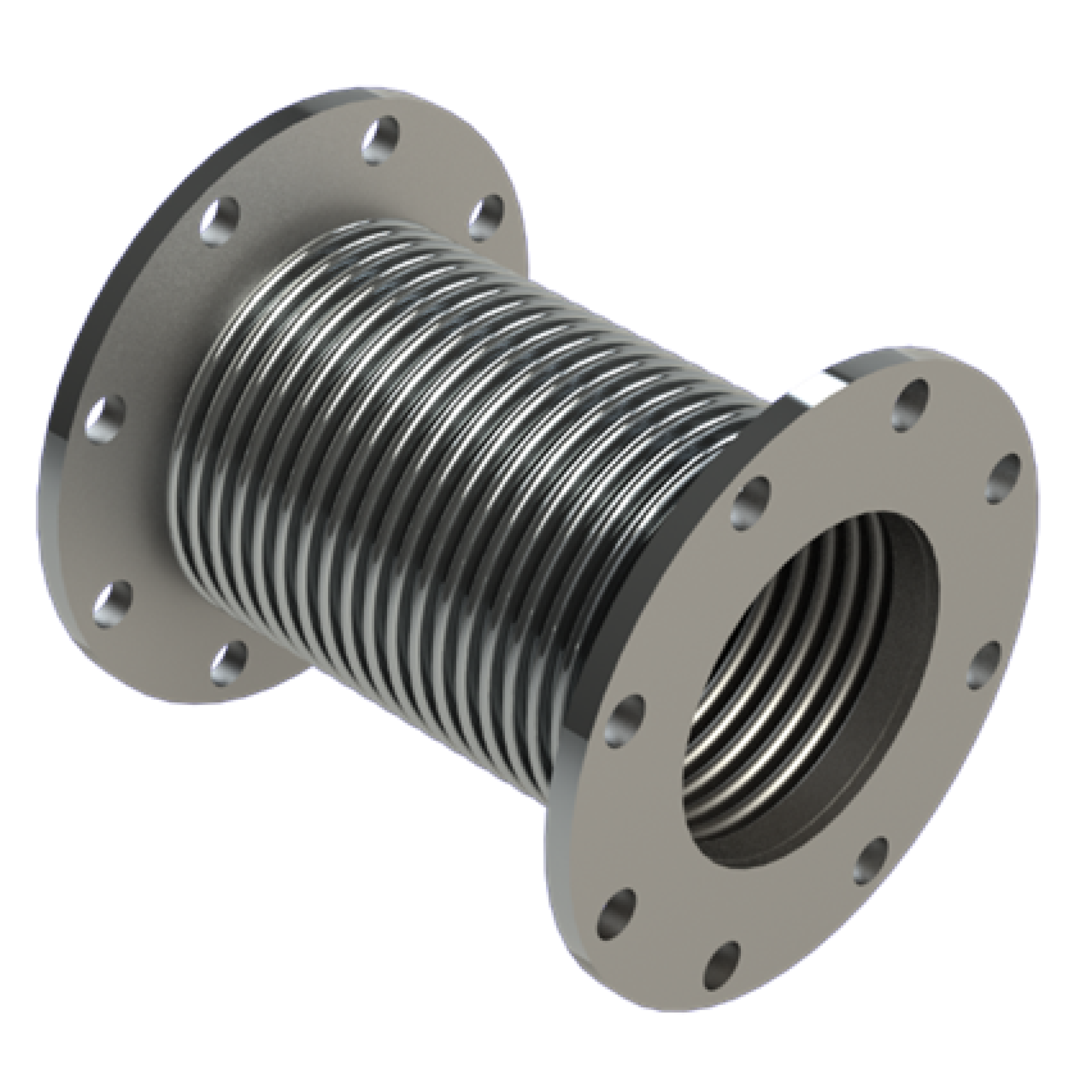

12" L/L Multi-Ply Bellows - Size 24”
Product Code: 50-240120-10K
Rated: 5 PSIG @ 1000ºF
Additional information
| Inlet (JIS) | 600mm |
|---|---|
| Outlet (JIS) | 600mm |
| Flange O.D. (MM) | 795 |
| Bolt Circle (MM) | 730 |
| Number Bolt Holes | 24 |
| Bolt Hole Diameter (MM) | 33 |
| Overall Length | 16.75” |
| Axial Compression | 5.25” |
| Axial Spring Rate | 204 |
| Lateral Offset | .750” |
| Lateral Spring Rate | 1324 |
