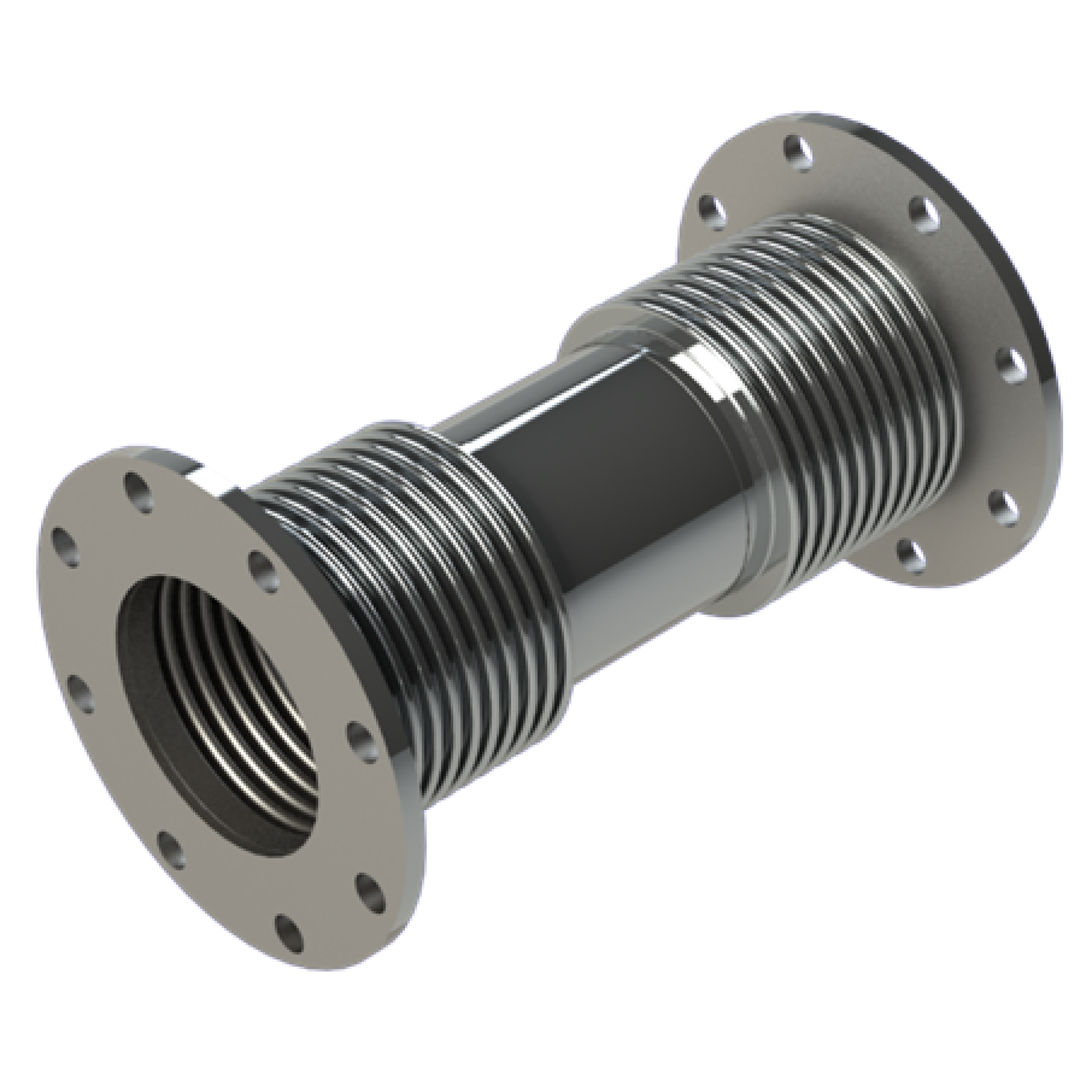

24" F/F Multi-Ply Bellows - Size 40”
Product Code: 51-40010-24
Rated: 5 PSIG @ 1000F
Options
Additional information
| Size | 40” |
|---|---|
| Inlet Inside Diameter | 40” |
| Outlet Inside Diameter | 40” |
| Overall Length | 24” |
| Axial Compression | 8.00” |
| Axial Spring Rate | 154 |
| Lateral Offset | 1.75” |
| Lateral Spring Rate | 604 |
