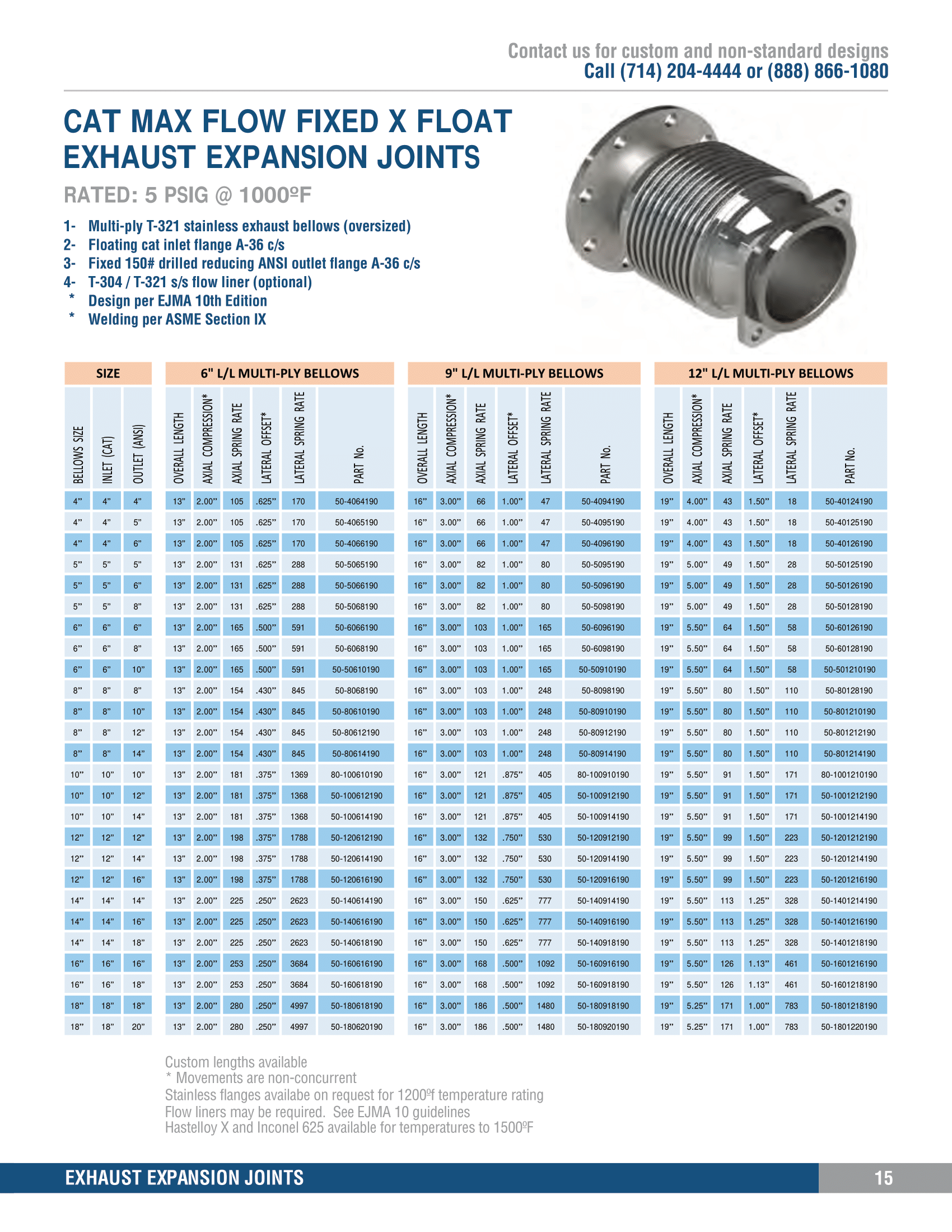

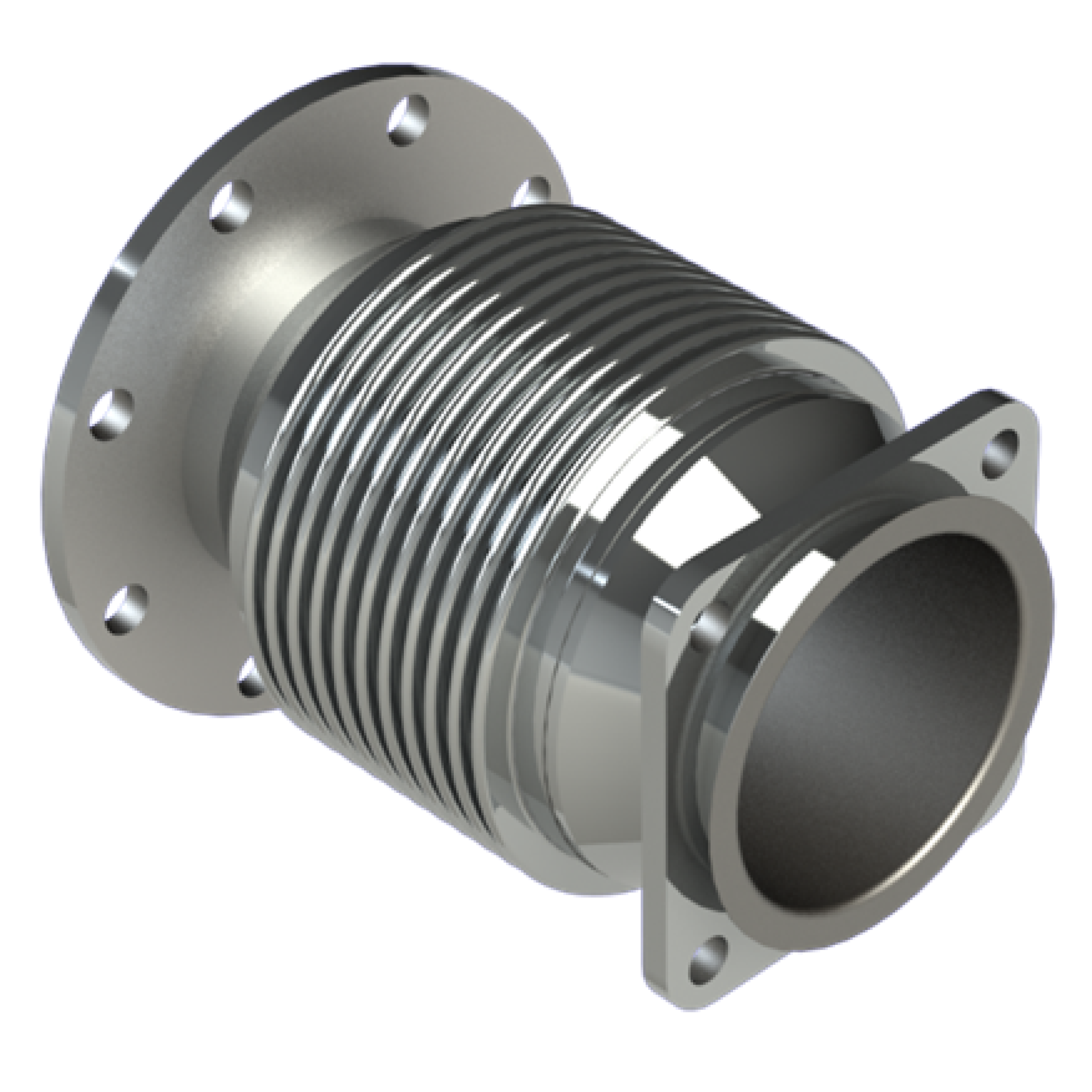

9" L/L Multi-Ply Bellows - Size 12” - Outlet 12”
You must be logged in.
Rated: 5 PSIG @ 1000F
Options
4” - Outlet 4”
4” - Outlet 5”
4” - Outlet 6”
5” - Outlet 5”
5” - Outlet 6”
5” - Outlet 8”
6” - Outlet 6”
6” - Outlet 8”
6” - Outlet 10”
8” - Outlet 8”
8” - Outlet 10”
8” - Outlet 12”
8” - Outlet 14”
10” - Outlet 10”
10” - Outlet 12”
10” - Outlet 14”
12” - Outlet 12”
12” - Outlet 14”
12” - Outlet 16”
14” - Outlet 14”
14” - Outlet 16”
14” - Outlet 18”
16” - Outlet 16”
16” - Outlet 18”
18” - Outlet 18”
18” - Outlet 20”
Additional information
| Size | 12" |
|---|---|
| Inlet Inside Diameter | 12" |
| Outlet Inside Diameter | 12" |
| Overall Length | 16” |
| Axial Compression | 3.00” |
| Axial Spring Rate | 132 |
| Lateral Offset | .750” |
| Lateral Spring Rate | 530 |
