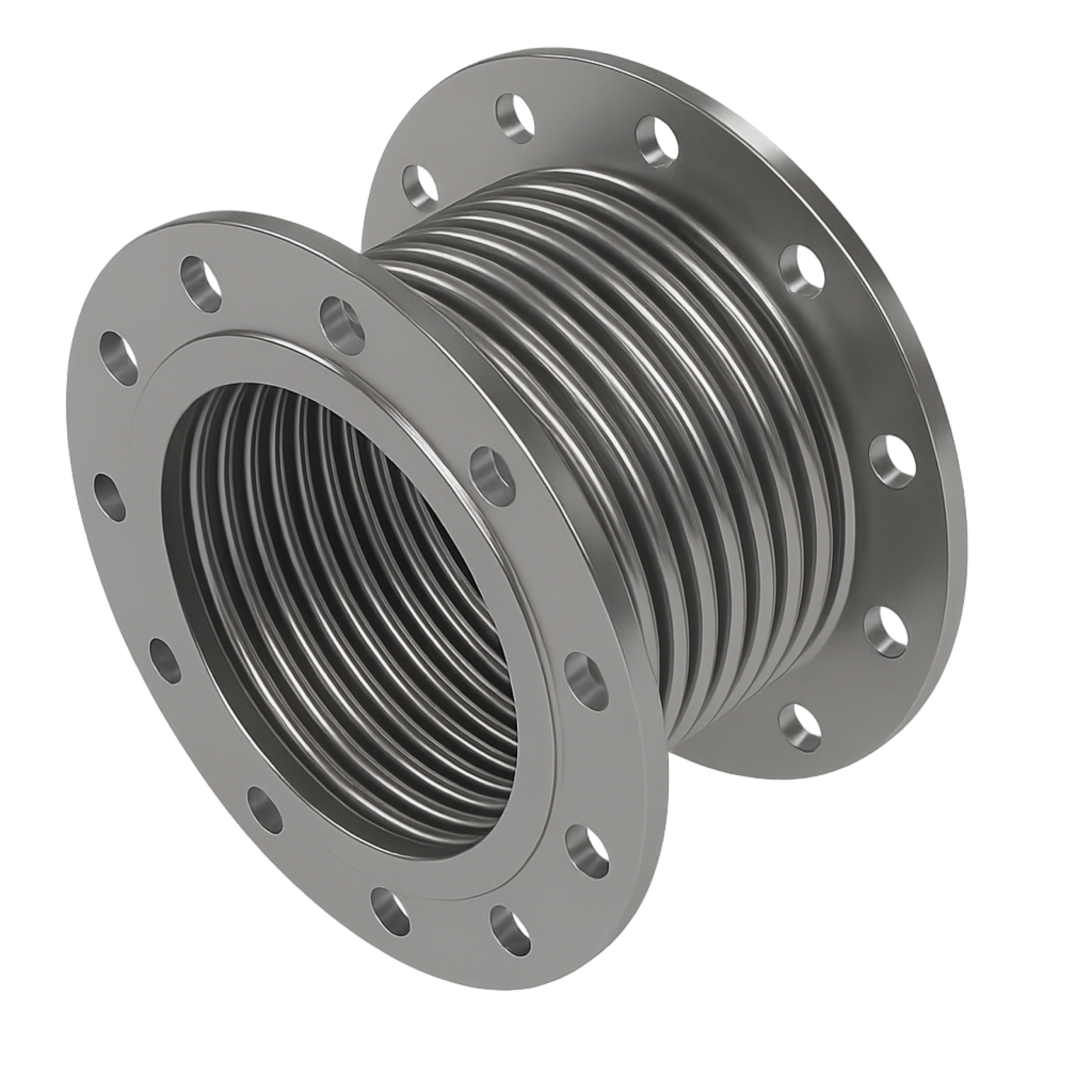

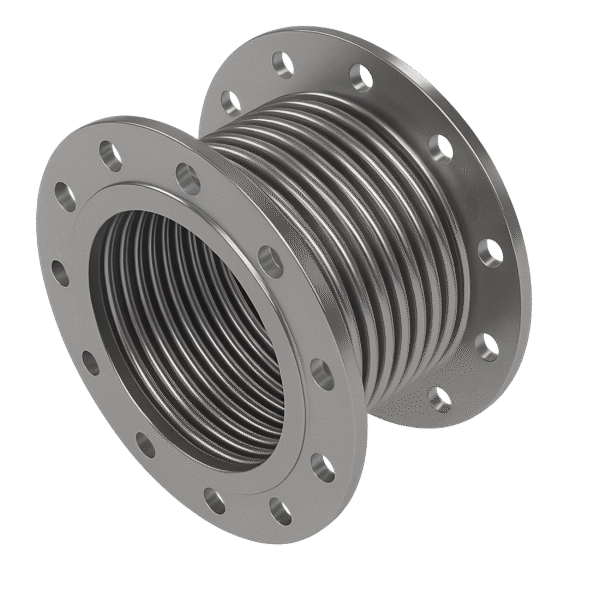

9" L/L Multi-Ply Bellows - Size 42”
Product Code: 50-42010
Rated: 5 PSIG @ 1000F
Options
Additional information
| Size | 42” |
|---|---|
| Inlet Inside Diameter | 42” |
| Outlet Inside Diameter | 42” |
| Overall Length | 10” |
| Axial Compression | 3.00" |
| Axial Spring Rate | 335 |
| Lateral Offset | .250” |
| Lateral Spring Rate | 11559 |
