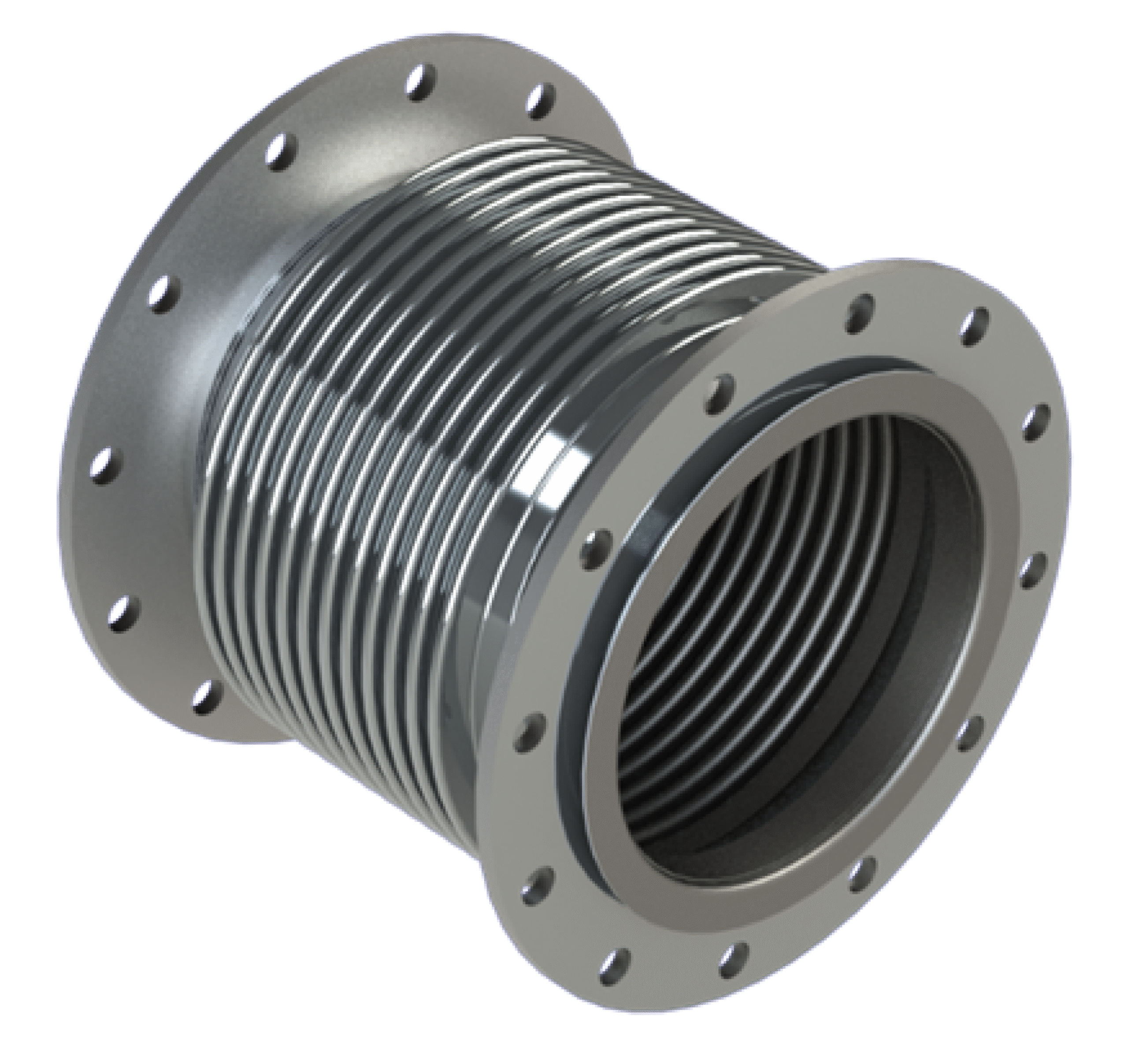

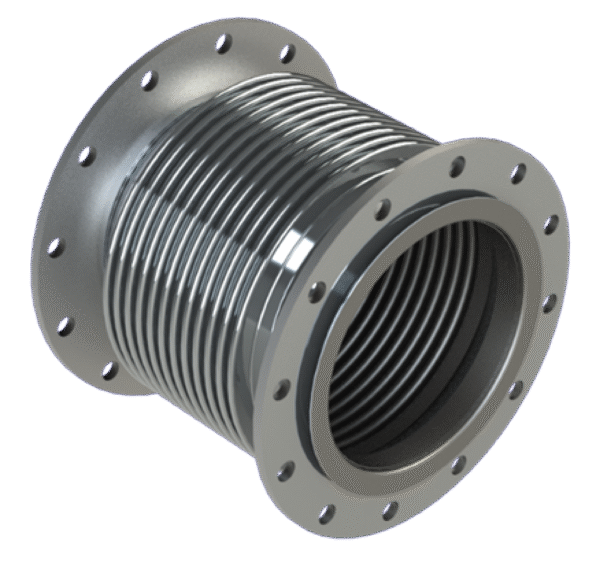

6" L/L Multi-Ply Bellows - Size 3” - Outlet 3”
You must be logged in.
Rated: 5 PSIG @ 1000F
Options
3-1/2” - Outlet 3.5”
3” - Outlet 3”
4” - Outlet 4”
5” - Outlet 5”
6” - Outlet 6”
8” - Outlet 8”
10” - Outlet 10”
12” - Outlet 12”
14” - Outlet 14”
16” - Outlet 16”
18” - Outlet 18”
20” - Outlet 20”
22” - Outlet 22”
24” - Outlet 24”
26” - Outlet 26”
28” - Outlet 28”
30” - Outlet 30”
32” - Outlet 32”
34” - Outlet 34”
36” - Outlet 36”
38” - Outlet 38”
40” - Outlet 40”
42” - Outlet 42”
44” - Outlet 44”
46” - Outlet 46”
48” - Outlet 48”
Additional information
| Size | 3” |
|---|---|
| Inlet Inside Diameter | 3” |
| Outlet Inside Diameter | 3” |
| Overall Length | 9” |
| Axial Compression | 1.50” |
| Axial Spring Rate | 123 |
| Lateral Offset | 0.625 |
| Lateral Spring Rate | 81 |
