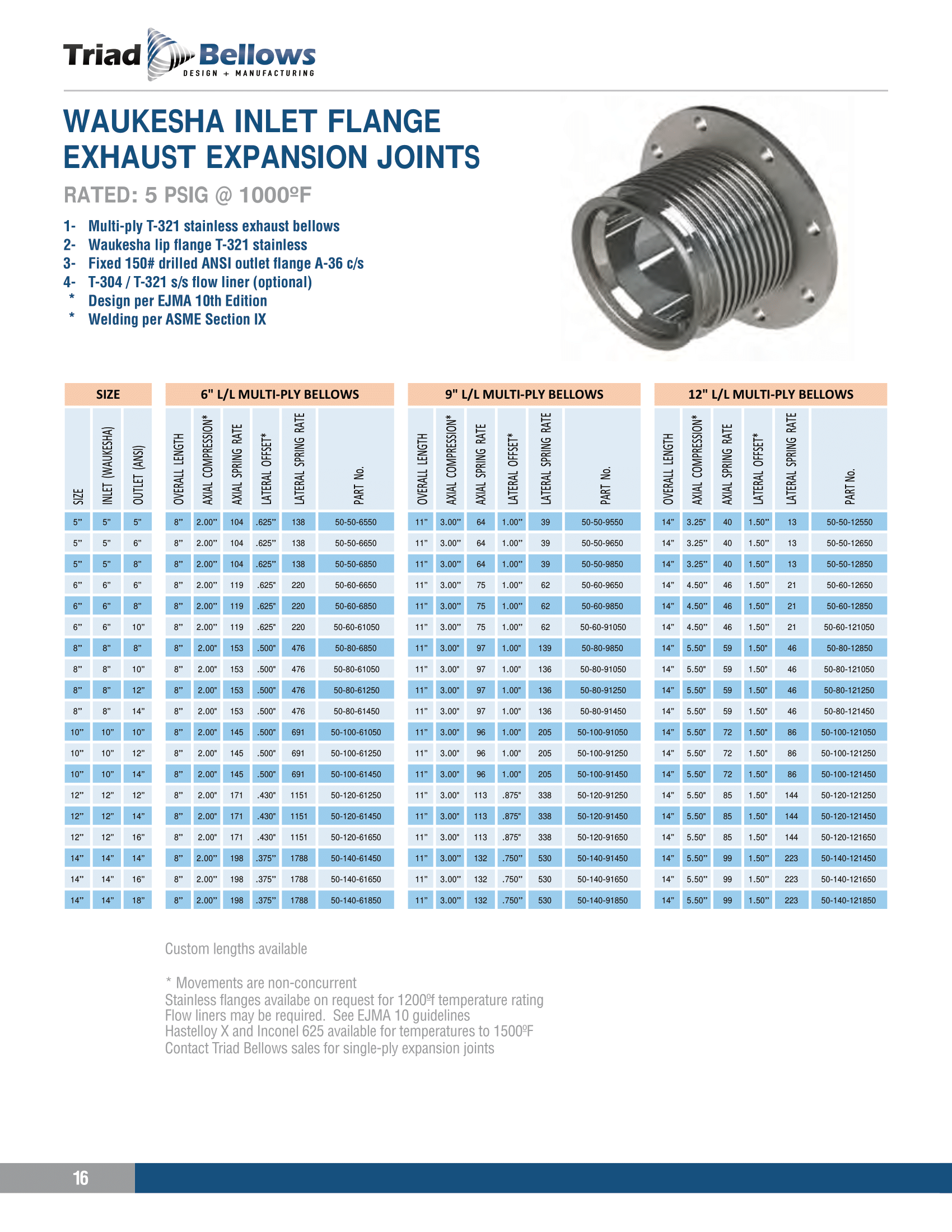

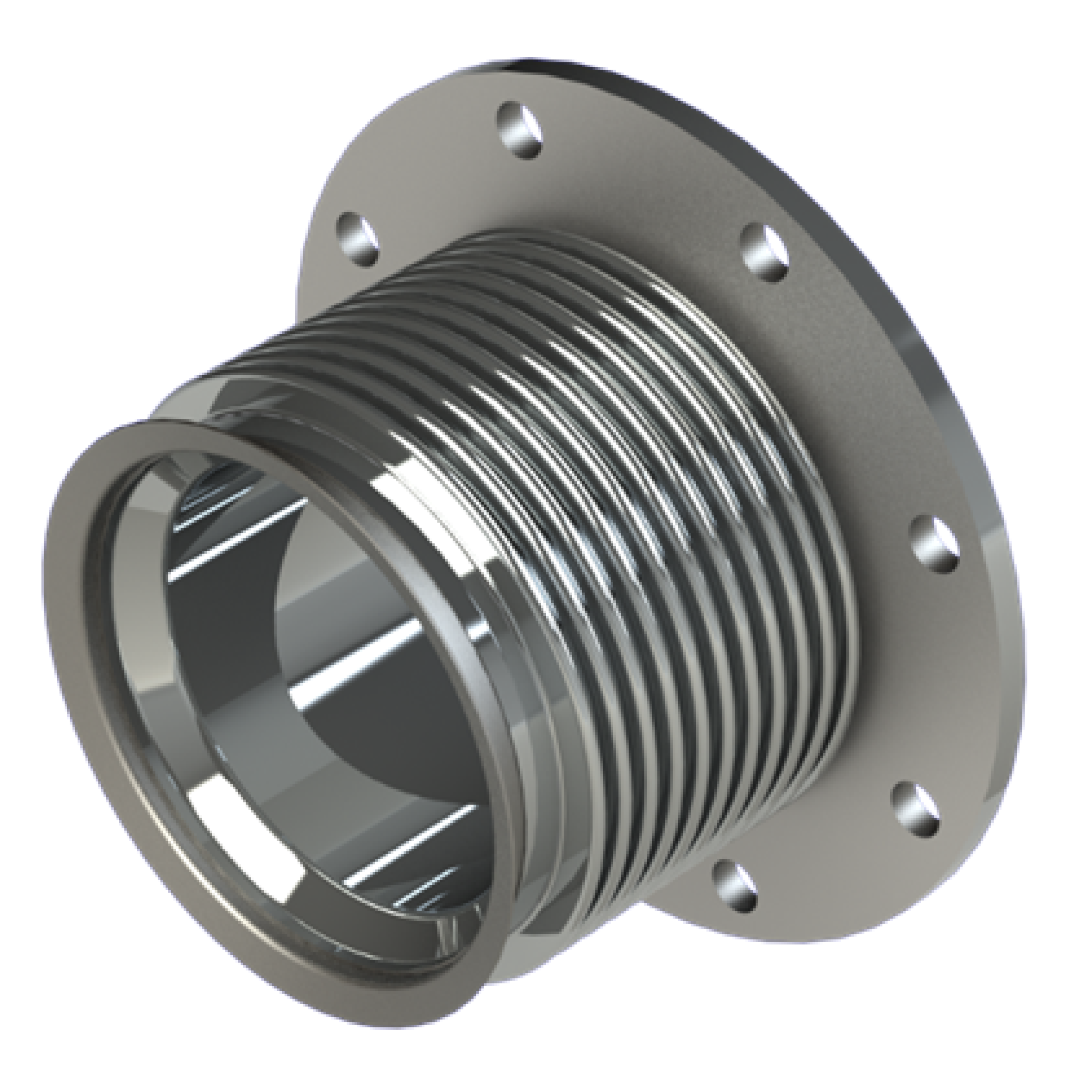

9" L/L Multi-Ply Bellows - Size 5” - Outlet 6”
You must be logged in.
Rated: 5 PSIG @ 1000F
Options
5” - Outlet 5”
5” - Outlet 6”
5” - Outlet 8”
6” - Outlet 6”
6” - Outlet 8”
6” - Outlet 10”
8” - Outlet 8”
8” - Outlet 10”
8” - Outlet 12”
8” - Outlet 14”
10” - Outlet 10”
10” - Outlet 12”
10” - Outlet 14”
12” - Outlet 12”
12” - Outlet 14”
12” - Outlet 16”
14” - Outlet 14”
14” - Outlet 16”
14” - Outlet 18”
Additional information
| Size | 5” |
|---|---|
| Inlet Inside Diameter | 5” |
| Outlet Inside Diameter | 6” |
| Overall Length | 11” |
| Axial Compression | 3.00” |
| Axial Spring Rate | 64 |
| Lateral Offset | 1.00” |
| Lateral Spring Rate | 39 |
