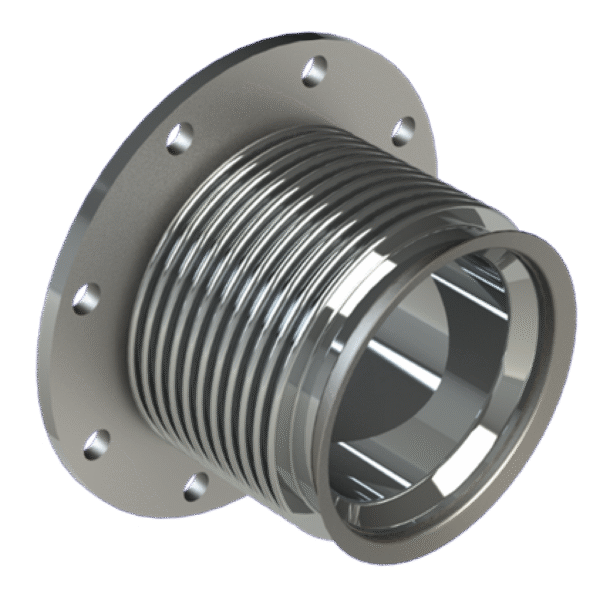

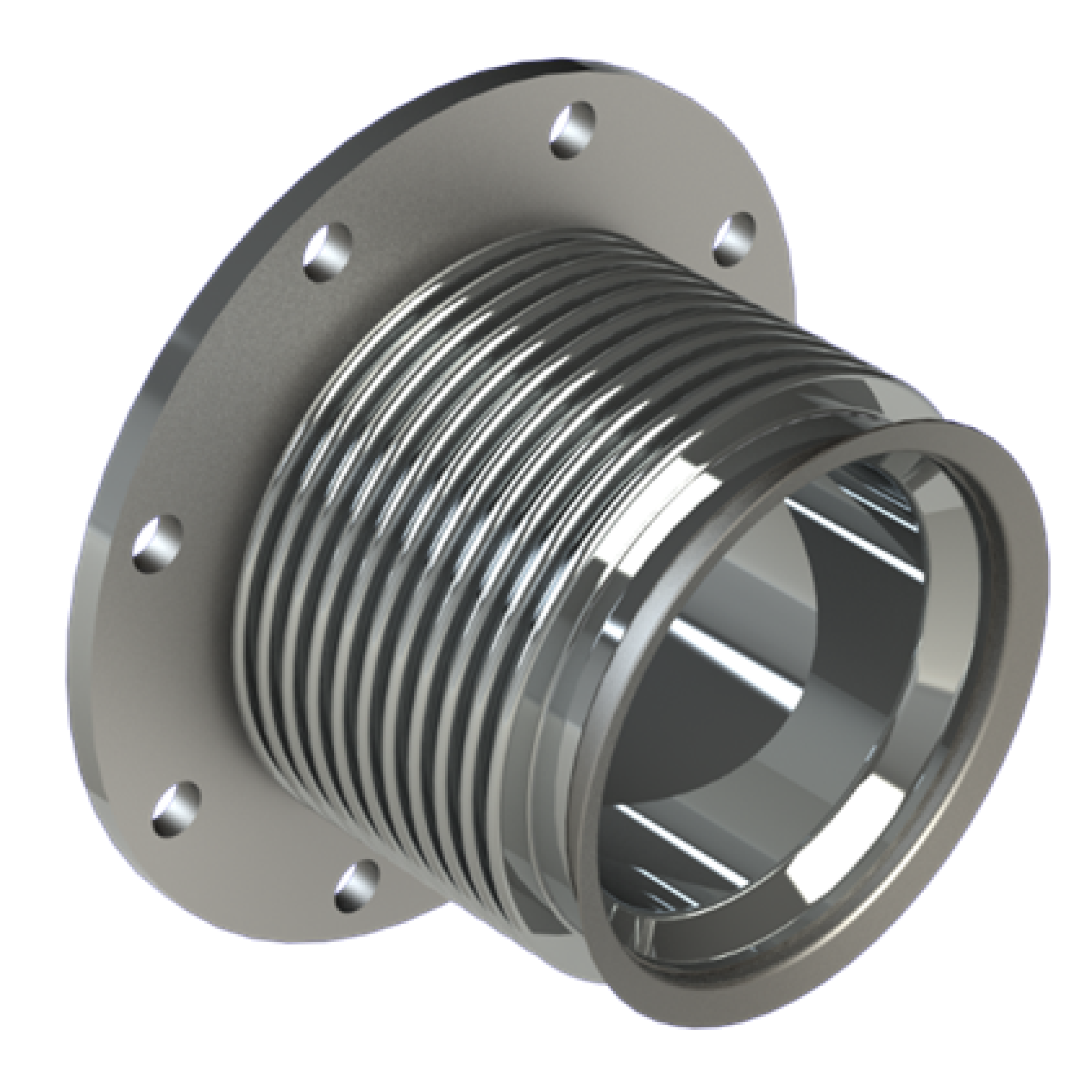

9" L/L Multi-Ply Bellows - Size 10”
Product Code: 50-100910220
Rated: 5 PSIG @ 1000F
Additional information
| Size | 10” |
|---|---|
| Inlet Inside Diameter | 10” |
| Outlet Inside Diameter | 10” |
| Overall Length | 12” |
| Axial Compression | 3.00” |
| Axial Spring Rate | 96 |
| Lateral Offset | 1.00” |
| Lateral Spring Rate | 205 |
