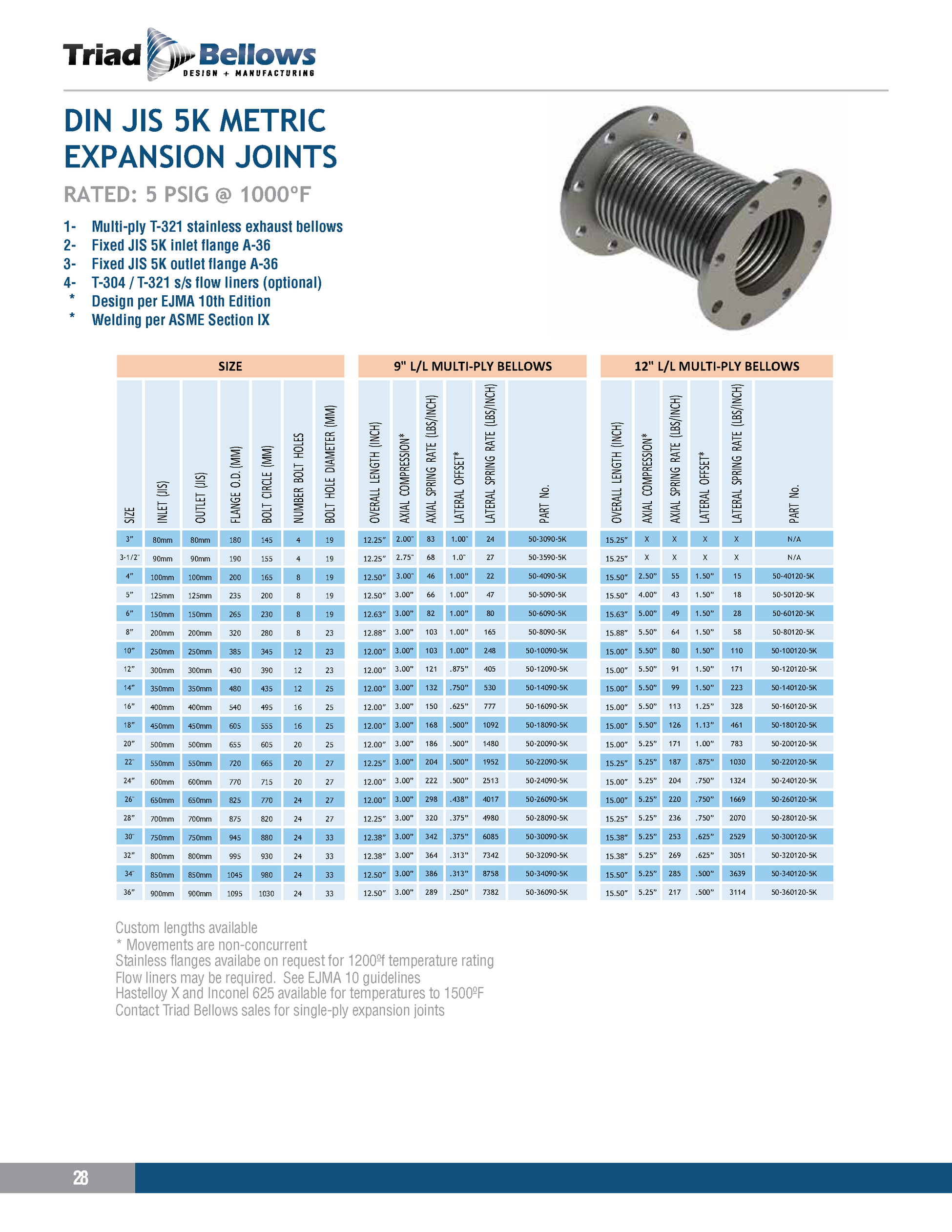

DIN JIS 5K Metric Expansion Joints
/
9" L/L Multi-Ply Bellows
/
9″ L/L Multi-Ply Bellows – Size 16″
Categories
Categories
Exhaust Expansion Joint Manufacturer & Supply
/
Metric (Din & Jis) Expansion Joints
/
DIN JIS 5K Metric Expansion Joints
/
9" L/L Multi-Ply Bellows
/
9″ L/L Multi-Ply Bellows – Size 16″
9" L/L Multi-Ply Bellows - Size 16"
Product Code: 50-16090-5K
Rated: 5 PSIG @ 1000ºF
Additional information
| Inlet (JIS) | 400mm |
|---|---|
| Outlet (JIS) | 400mm |
| Flange O.D. (MM) | 540 |
| Bolt Circle (MM) | 495 |
| Number Bolt Holes | 16 |
| Bolt Hole Diameter (MM) | 25 |
| Overall Length | 12.00” |
| Axial Compression | 3.00” |
| Axial Spring Rate | 150 |
| Lateral Offset | .625” |
| Lateral Spring Rate | 777 |
