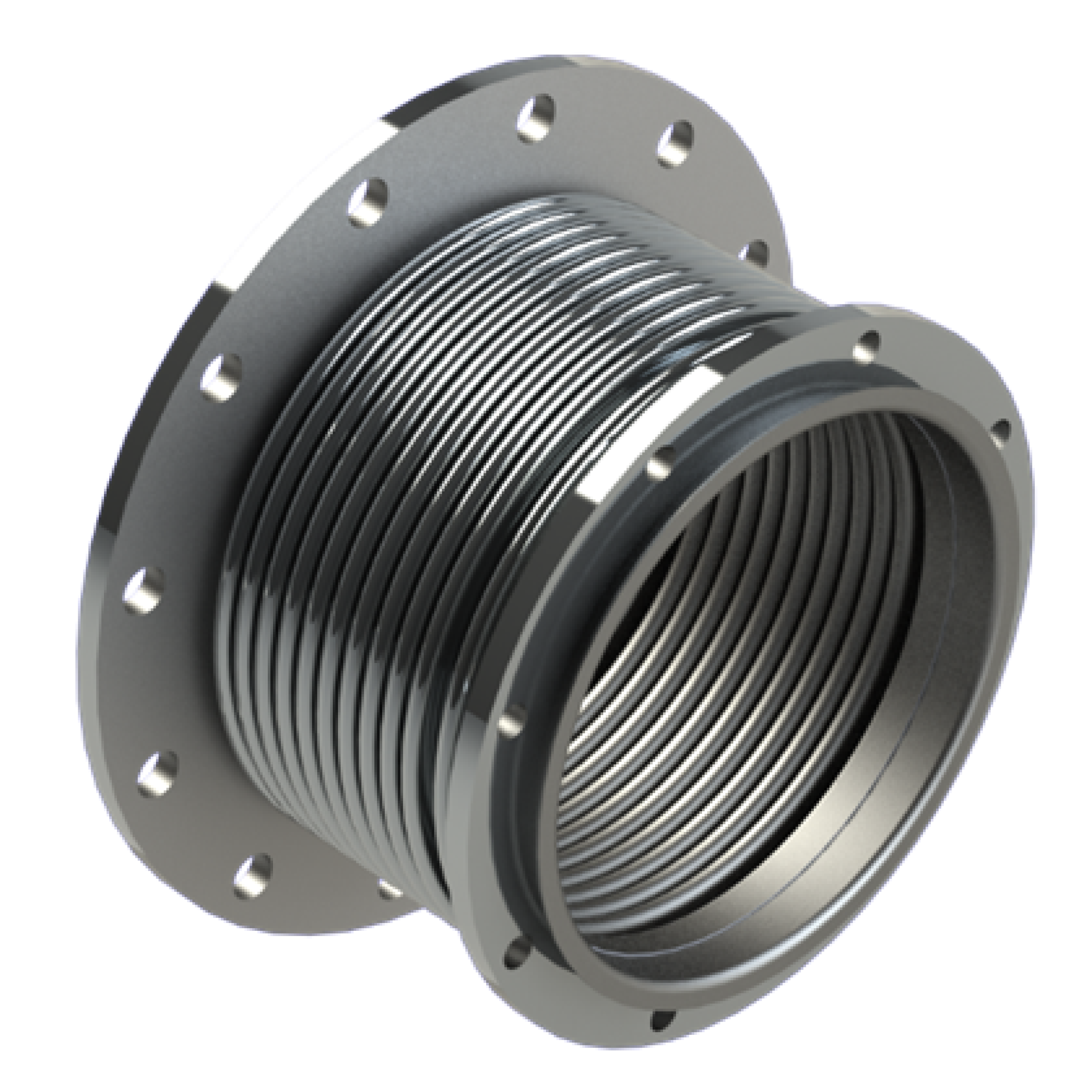

6" L/L Multi-Ply Bellows - Size 10" - Outlet 14"

6" L/L Multi-Ply Bellows - Size 10" - Outlet 14"

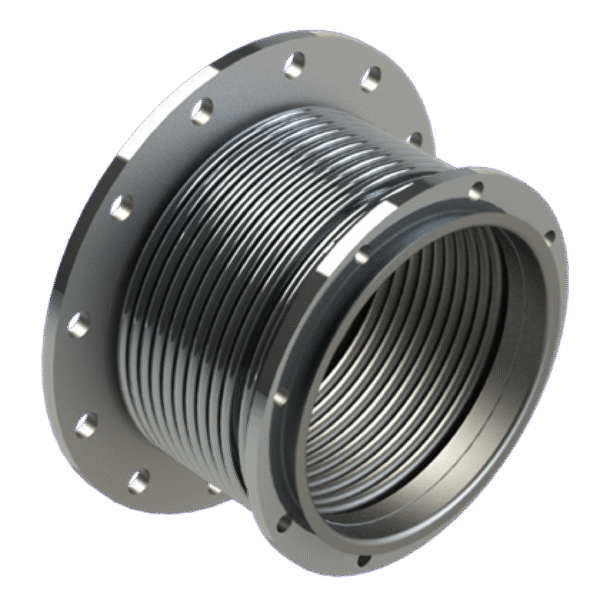

6" L/L Multi-Ply Bellows - Size 10" - Outlet 14" - Image 2

Product Code: 50-100614250

You must be logged in.

Rated: 5 PSIG @ 1000F

Options

8" - Outlet 8" 8" - Outlet 10" 8" - Outlet 12" 10" - Outlet 10" 10" - Outlet 12" 10" - Outlet 14"

Additional information

Size	10"
Inlet Inside Diameter	10"
Outlet Inside Diameter	14"
Overall Length	9"
Axial Compression	2.00"
Axial Spring Rate	145
Lateral Offset	.500"
Lateral Spring Rate	691
